Creating Cavity Sliding Doors in KD Max

 In KD Max, Tutorial, V6

Trying to find a cavity sliding door in the KD Max library?

Follow these simple steps to create your own cavity sliding doors in KD Max design software!

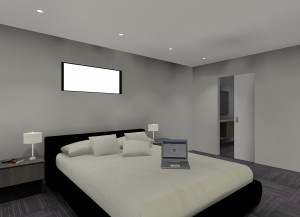

KD Max bedroom render

1.

To begin, navigate back to the 2D view and select Wall Hole.

We’ll be using the wall hole as our doorway for the sliding door.

Enter in your dimensions, you’ll want the elevation to be 0 so the wall hole sits on the floor. Height and width are based on your door sizing.

interface screenshot

2.

Now navigate to Search by Type and select Tall UnitEnd Panel.

The end panel will act as our sliding door.

interface screenshot

3.

Now position the panel in the door way as required. To create the sliding door look, make the panel shorter than the doorway so the door appears opened. This can be used in bedrooms or for a butlers pantry to show cabinets in a second room.

interface screenshot

4.

To complete the look navigate to Search Type > Handles and fix a handle to the panel.

interface screenshot

5.

Now turn the lights on and render the drawing to preview the door!

KD Max white wall and door render
